Connection Guide

Components

• Microcontroller board: ShieldBuddy_TC275
• Motor Driver: DC Motor Control Shield with IFX007T
• DC Motor included in Kit
• Servo motor for steering included in Kit

[Optional]

• Bluetooth Slave UART Board

• Servo motor for scanning

• Line Scan Camera: TSL1401 X 2

• Incremental Encoder: E30S4-1024-3-N-5 1024(/512/256) PPR

• etc

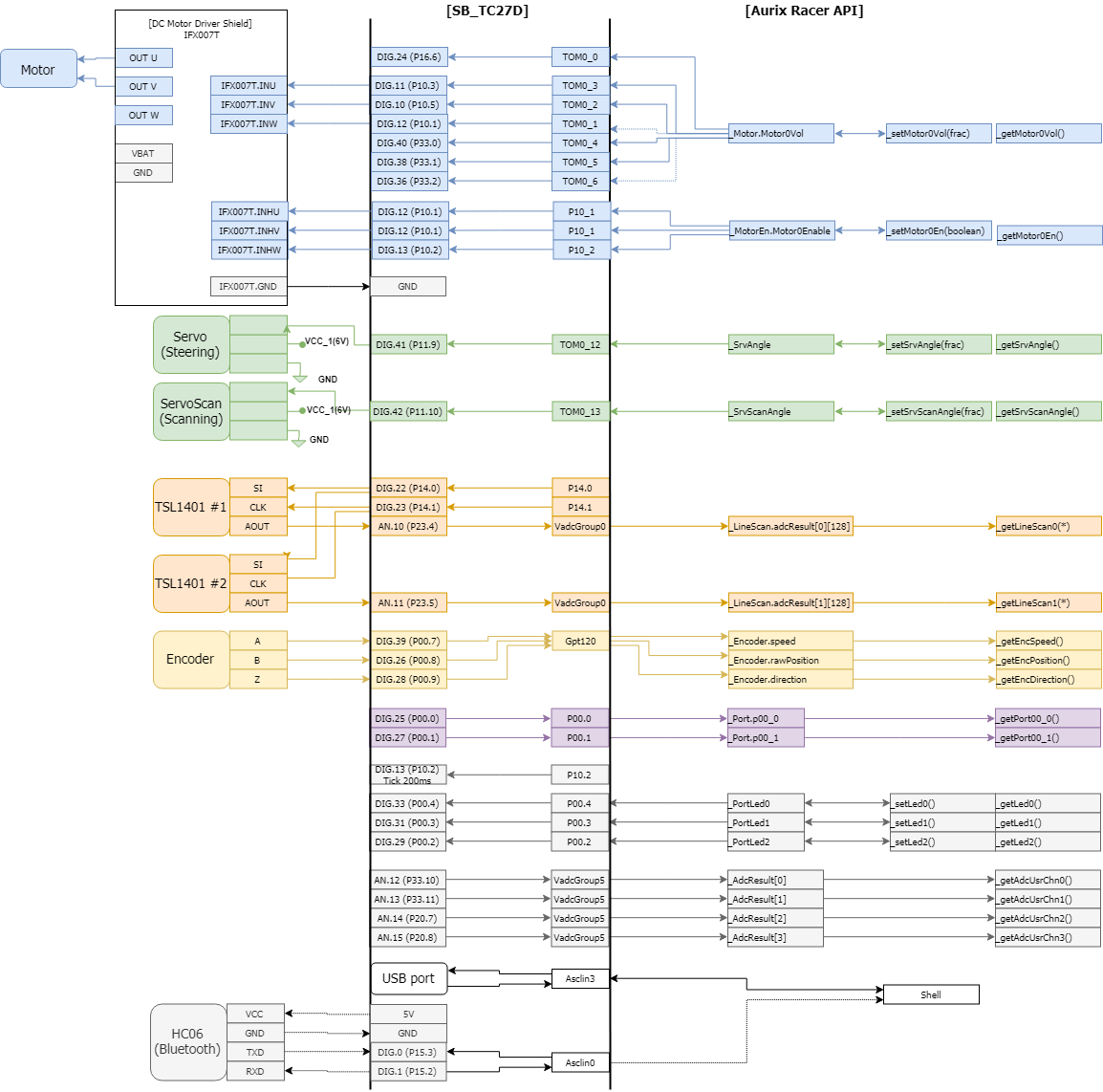

Connection Diagram
